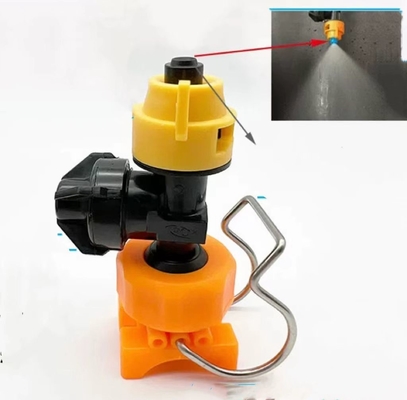

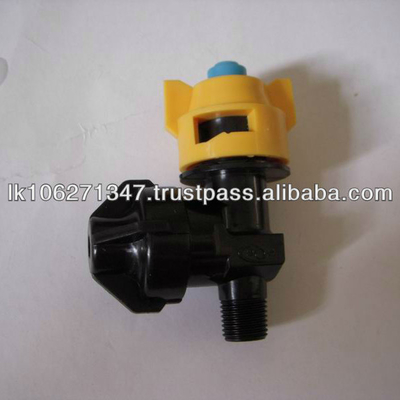

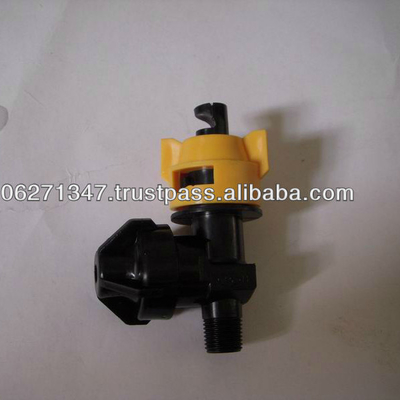

PP Plastic Full Cone or Flat Fan Spray Nozzle with Check Valve and Cattle Farm Cooling

In this type of nozzle body, the  check valve is an integral part of the nozzle assembly. This design eliminates the pressure drop associated with ball-type check valves. This spring-backed diaphragm ensures dependable closure. Originally developed for use in aerial spraying, nozzle bodies of this design are now widely used whenever drip-free shutoff is required. For maximum operating pressures of 125 psi (9 bar).

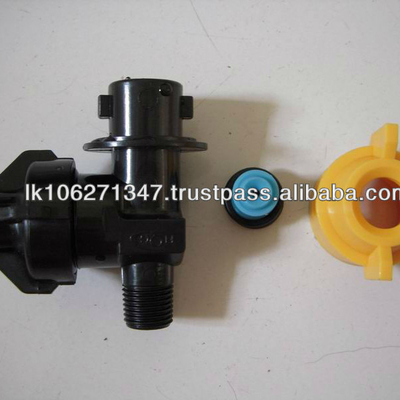

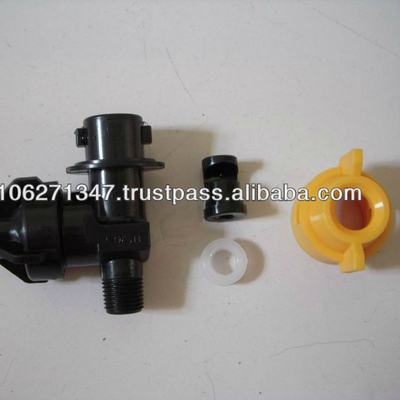

• End cap subassembly
• Valve seat
• Strainer
• Orifice disc and core

spray  angle: 180degree, 360degreee

spray pattern: wid angle full cone/ flat fan

• Made of nylon with nylon/polypropylene end cap assembly.
• Check valve opens at 10 psi (0.7 bar) pressure.
• Choice 1/4" NPT (F) inlet connections.
• Flow rate for 1/4" is 3.9 gpm at 5 psi pressure drop (15 l/min at 0.34 bar)

full cone or flat fan spray nozzle with check valve for cattle farm cooling could use together with clamp or clip on clamp
