Product Details:
|
| Applicable Industries: | Energy & Mining, Food & Beverage Shops | Weight (KG): | 0.01 |
|---|---|---|---|
| Showroom Location: | Sri Lanka | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Condition: | New |
| Type: | Nozzle | Marketing Type: | Ordinary Product |
| Material: | PP,BRASS | Product Name: | Fine Atomization Nozzle |
| Application: | Humidity | Port: | Shenzheng |

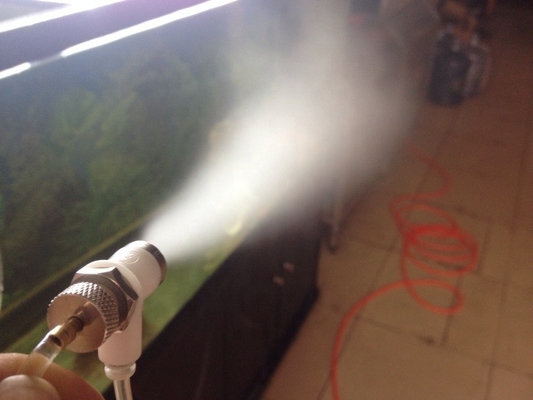

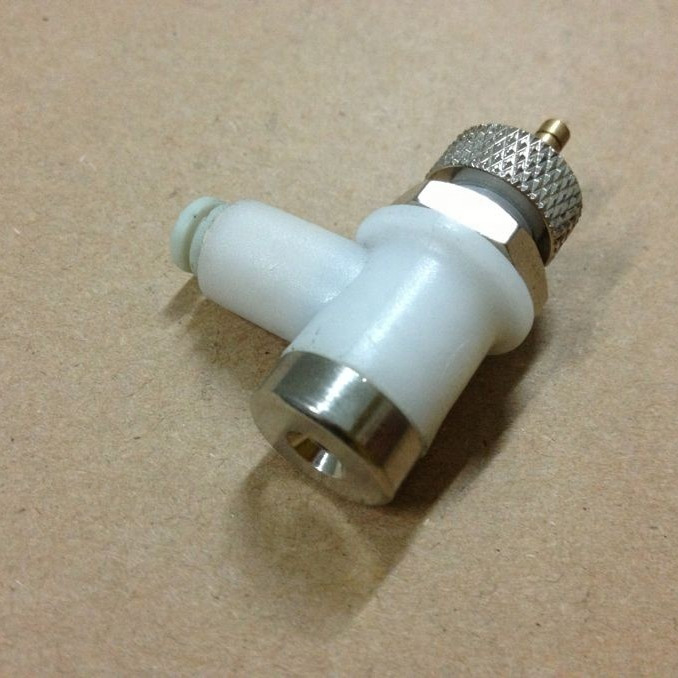

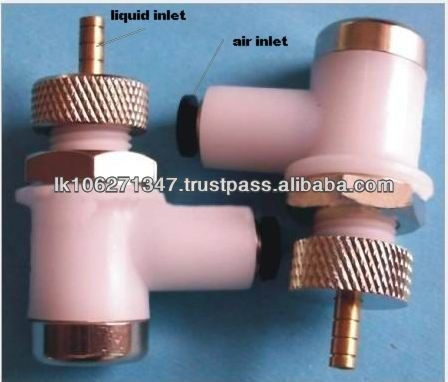

Eternal siphon mini plastic air&water atomizing nozzle
1)Average particle size 10 micron two fluid oval fine spray nozzle,
2)spray angle and flow rate adjustment range is small,
3) covering a wide range of spray distance.
4)material: plastic and brass
5) Spray angle: 30 °
6) Spray distance: spray distance change as per air pressure change, max spray distance is 3 meter
7)fitting: 4mm hose connection
8)fix method: M10 threaded hole ,DIA 10.5
9) Working pressure: air pressure 0.05-0.8Mpa , Fluid pressure: 0
10) flow rate : 20-500 l/min(air comsuption ), orific size: 0.2mm, liquid flow rate: 2L/min
the range of application Spray disinfection applicable to supermarket, clear odors, mushroom cultivation of humidification
