Product Details:
|
| Warranty: | 3 Months | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
|---|---|---|---|
| Weight (KG): | 0.02 | Showroom Location: | Sri Lanka |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Condition: | New | Type: | Nozzle |
| Thread Size: | 1/8",1/4",3/8",1/2".1" | Port: | Shenzheng |

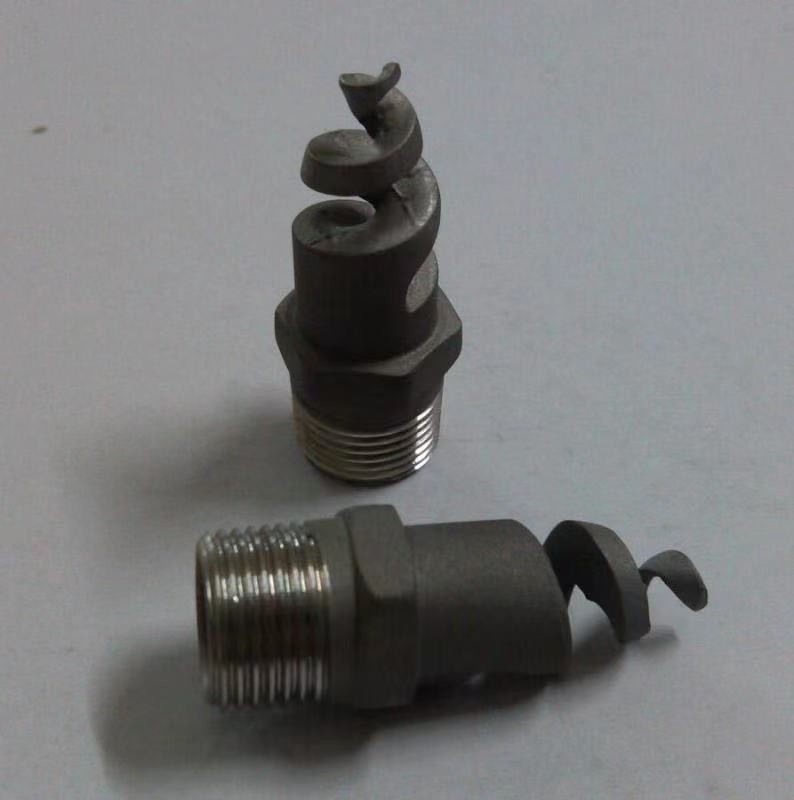

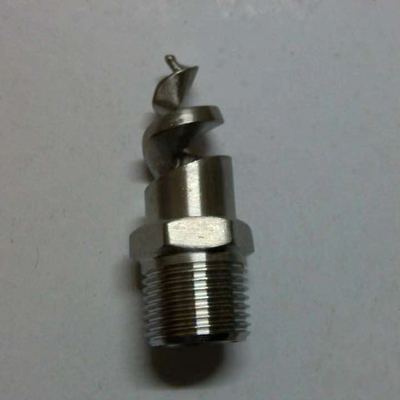

full cone spiral jet spray nozzle(HSJ)full cone nozzle
This type HSJ is a full cone spray nozzle available for spray angles ranging from 60°to 170°.
These compact nozzles permit maximum liquid throughtput for a given pipe size and the free passage design minimizes clogging.
The compact size can be installed or retrofitted on most pipe systems.Available in NPT or BSPT (M) threads.
Flow capacity at 3bar (40psi) ranges from 1.4 to 1050 gpm(5.5 to 4140l/min).
Sizes 1/4" to 2" are available in brass ,cast 316SS and TEFLON or PVC materials.
Brass version is available with hex design,Stainless stell with flats .TEFLON and PVC nozzles with rounds with rounded design. In the large 3" and 4" sizes
,both brass and stainless stell are available .
TEFLON and PVC nozzles with rounds with rounded design. In the large 3" and 4" sizes ,both brass and stainless stell are available in flats design only.
They can also be produced from a wide variety of other materials for specific applications.
